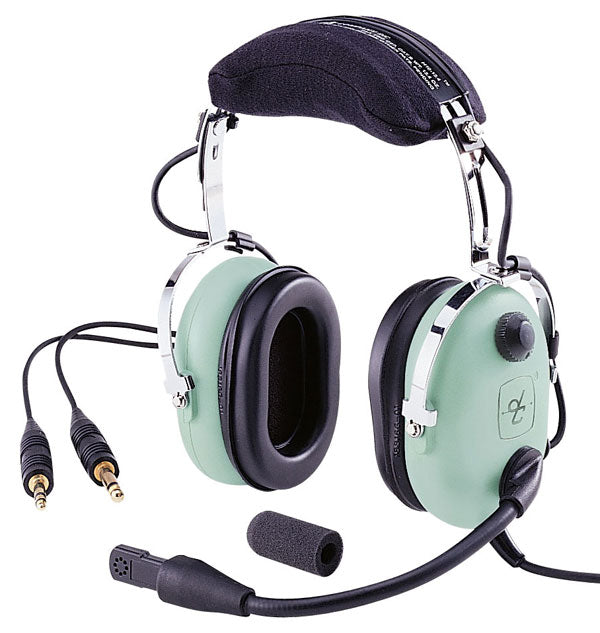

David Clark H10-13S Stereo Headset

Overview

The H10-13S headset is a stereo version of the H10-13.4 headset, also with a straight cord and dual plugs. The H10-13S headset provides David Clark quality without the hot spots, clamping, or weight discomfort. It features a certified noise reduction rating of 23 dB and weighs only 16.5 oz. It features M-7A noise cancelling electret mic, and low profile volume controls with detent settings.

The Super-Soft, Double-Foam Headpad will improve the comfort and “wearability” of all H10-series headsets. It is wider and more tapered with 60% more surface area in contact with the head to dissipate headset weight. Its unique center “hinge” actually lets the headpad “breathe” for greater comfort. It also eliminates irritation while wearing button-top baseball caps.

The new Comfort-Gel Ear Seals have a patented undercut design and are 26% lighter and allow 30% more interior room for your ears, making for a quieter, more comfortable flight.


    Earphone Type: Dynamic
    Earphone Impedance: 150 ohms(300 each; wired in parallel)
    Earphone Sensitivity: 90 dB SPL on flat plate coupler, re 1mW input @ 1KHz
    Earphone Frequency Response: 200-5,500 Hz
    Earphone Plug: PJ-055 (.25" phone plug)
    Boom Type: Universal Flex
    Headpad/Hardware: Super-Soft, Double-Foam Headpad,Lightweight Hardware
    Noise-Canceling Mic: M-7A Amplified Electret
    Mic Impedance: 50 ohms +/- 20%
    Mic Sensitivity: 400mV RMS ±6dB into 150 ohm load @ 1kHz for 114dB SPL input
    Mic Freq Response: 300Hz--3.5KHz per RTCA DO 214
    Mic Plug: PJ-068 (.206" phone plug)
    Cord: 5 ft.Straight
    Weight/Headset Only: 16.5 oz.
